¶ General Information
With the exception of arrivals to LO** or LK**, ACC may issue a direct to the next published waypoint in flightplan (in most cases exit waypoint from neighbouring FIR). This direct cannot be issued later than 5 minutes before crossing the border of AoR.
¶ LoAs Profiles
¶ LEDVA
¶ LKAA⇢LOVV
NIL
¶ LOVV⇢LKAA
| AIRPORT | FLIGHT LEVEL | REMARKS |
| LOWW LOAN LOAV | ⇡ FL230, 170A | Released for climb to FL240 after Transfer of Cummunication. |
| LKTB LKKU | ⇣ FL120 or below | |
| EPKK EPKT EPWR | ⇣ FL330 | |
| LKMT | ⇣ FL270 | |
| LKPD LKCV | ⇣ FL280 |
¶ MIKOV
¶ LKAA⇢LOVV
| AIRPORT | FLIGHT LEVEL | REMARKS |
| LKTB LKKU | ⇡ FL120 | |
| LKMT | ⇡ FL300, 250A | |
| EPKK EPKT EPWR to EDDM/EDMx | ⇡ max. FL320 | |
| EPKK EPKT EPWR to LIME LIPX LIPO LIPH LIPZ LIPE LIPB LDPL LSZS LSZH | ⇡ max. FL360 | |
| LOWS LOWK LJMB | ⇣ FL340 | |
| LOWI EDDM EDM* LDZA LJLJ | ⇣ FL340 | |
| LOWL LOWG | ⇣ FL300 | |
| LOWW LOAN LOAV | ⇣ FL130, 170B | Released for right turn after ADISU. |
¶ LOVV⇢LKAA
NIL
¶ NAVTI
¶ LKAA⇢LOVV
NIL
¶ LOVV⇢LKAA
| AIRPORT | FLIGHT LEVEL | REMARKS |
| LKPR LKKB LKVO LKKV LKMH LKHK | ⇣ FL300 | Only flights RFL250 or above. |
| LKPD LKCV | ⇣ FL280 |
¶ LOKVU
¶ LKAA⇢LOVV
NIL
¶ LOVV⇢LKAA
| AIRPORT | FLIGHT LEVEL | REMARKS |
| EDDC | ⇣ FL340 | Only flights RFL250 or above. |
| EDDP | ⇣ max. FL340 | Only flights RFL250 or above. |
| LKPR LKKB LKVO LKKV LKMH LKHK | ⇣ FL300 | Only flights RFL250 or above. |
| LKPD LKCV | ⇣ FL280 |
¶ LANUX
¶ LKAA⇢LOVV
| AIRPORT | FLIGHT LEVEL | REMARKS |
| LOWS LOWK LJMB | ⇣ FL330 | |
| LOWI EDDM EDM* LDZA LJLJ | ⇣ FL330 | |
| LOWL LOWG | ⇣ FL310 | |
| LZIB | ⇣ FL230 | |
| LOWW | ⇣ FL150 |
¶ LOVV⇢LKAA
| AIRPORT | FLIGHT LEVEL | REMARKS |
| LOWW LOAN LOAV | ⇡ FL240, 200A | Except destination LKPR. |
| LOWW | ⇡ FL180 | Destination LKPR. |
| LKPR LKKB LKVO LKKV LKMH LKHK | ⇣ FL300 | |
| LKPD LKCV | ⇣ FL280 |
Flights below FL240 are not part of the LoAs and can continue at RFL.
¶ PISAM
¶ LKAA⇢LOVV
| AIRPORT | FLIGHT LEVEL | REMARKS |
| LKPR LKKB LKVO LKPD | ⇡ FL290, 250A | Released for climb to FL300 after Transfer of Communication. |
¶ LOVV⇢LKAA
| AIRPORT | FLIGHT LEVEL | REMARKS |
| LKPR LKKB LKVO LKKV LKMH LKHK | ⇣ FL300 | Only flights RFL250 or above. |
| LKPD LKCV | ⇣ FL280 |
¶ DITIS
¶ LKAA⇢LOVV
| AIRPORT | FLIGHT LEVEL | REMARKS |
| LKPR LKKB LKVO LKPD | ⇡ FL290, 250A | Released for climb to FL300 after Transfer of Communication. |
| LKCS | ⇡ FL110 | Released for climb to FL120. |
¶ LOVV⇢LKAA
| AIRPORT | FLIGHT LEVEL | REMARKS |
| LZIB | ⇡ FL340, 310A | |
| LOWW | ⇡ FL300, 250A | |
| LOWW | ⇡ max. FL240 | |
| LKPD LKCV | ⇣ FL280 | |
| LKPR LKKB LKVO LKKV LKMH LKHK | ⇣ FL300 | Only flights RFL250 or above. |
| EDDN EDDE EDQ* ETHN | ⇣ max. FL360 |
Available for flights with RFL250 or above only.
Departures LOWW coordinated climbing FL300 shall be transferred to LKAA_MHT_CTR (if active) and if RFL is above FL300.
¶ LUPEV
¶ LKAA⇢LOVV
| AIRPORT | FLIGHT LEVEL | REMARKS |
| LOWL | ⇣ FL170, 210B | Transfer to Linz APP (LOWL_APP). |
Praha ACC may clear Arrivals LOWL direct PETEN.
Praha ACC shall be responsible for the provision of separation between traffic converging after BUDEX and LUPEV.
¶ LOVV⇢LKAA
| AIRPORT | FLIGHT LEVEL | REMARKS |
| LOWL | ⇡ FL160 |
¶ UPEGU
¶ LKAA⇢LOVV
NIL
¶ LOVV⇢LKAA
| AIRPORT | FLIGHT LEVEL | REMARKS |
| LOWS | ⇡ FL300, 250A |
ACC-FIC Wien and APP Linz (LOWL_APP) can issue direct UPEGU without previous coordination.
¶ BUDEX
¶ LKAA⇢LOVV
| AIRPORT | FLIGHT LEVEL | REMARKS |
| LZIB | ⇣ FL330 | |
| LOWS | ⇣ FL310 | |
| LOWW LOAN LOAV | ⇣ FL310, 340B | |
| LOWG | ⇣ max. FL330 | |
| LOWL | ⇣ FL170, 210B | Transfer to Linz APP (LOWL_APP). |
Praha ACC shall be responsible for the provision of separation between traffic converging after BUDEX and LUPEV.
¶ LOVV⇢LKAA
| AIRPORT | FLIGHT LEVEL | REMARKS |
| LKPR LKKB LKVO LKKB LKMH LKHK | ⇣ FL250 | |
| LOWS | ⇡ FL130 | |
| LKAA | ⇣ FL250 | Released for turn and descent to FL170 within BUDEX area. |
Flights with DEST LOWW via BUDEX shall be transferred to Wien ACC sector N1 if coordinated at FL310 or descending FL310 out of FL340.
¶ Delegated Areas

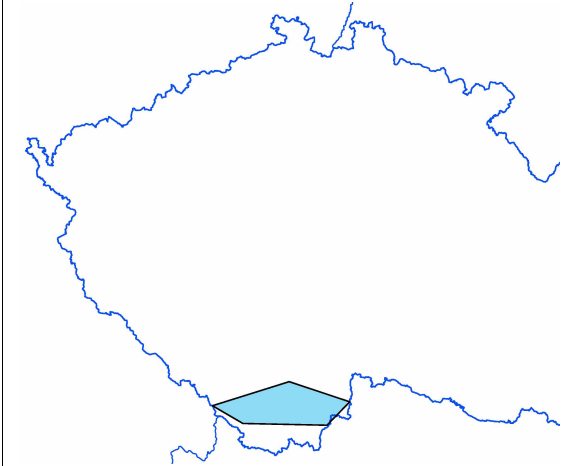

¶ BUDEX Area
Delegated area from ACC Wiean, which is located south of LKCS.
| FLIGHT LEVEL RANGE | RESPONSIBLE STATION |
| FL125 - FL660 | LOVV_CTR (Wien ACC) |
| FL95 - FL125 | LKKV_APP (Karlovy Vary APP/ACC Praha Term) |

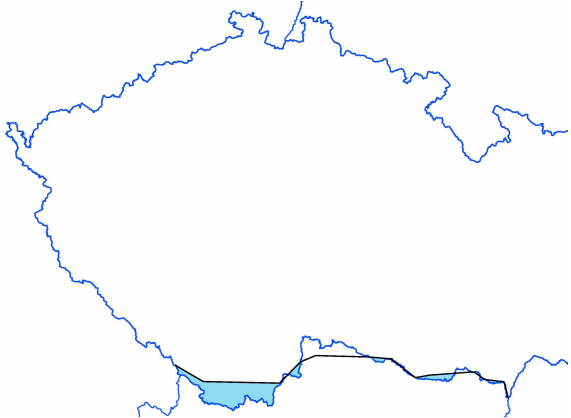

¶ LANUX Line
Delegated Area from ACC Wien, which is located throughout the whole south border with Austria.
FRA according to AIP Austria in use in the area.
| FLIGHT LEVEL RANGE | RESPONSIBLE STATION |
| FL95- FL660 | LOVV_CTR (Wien ACC) |
